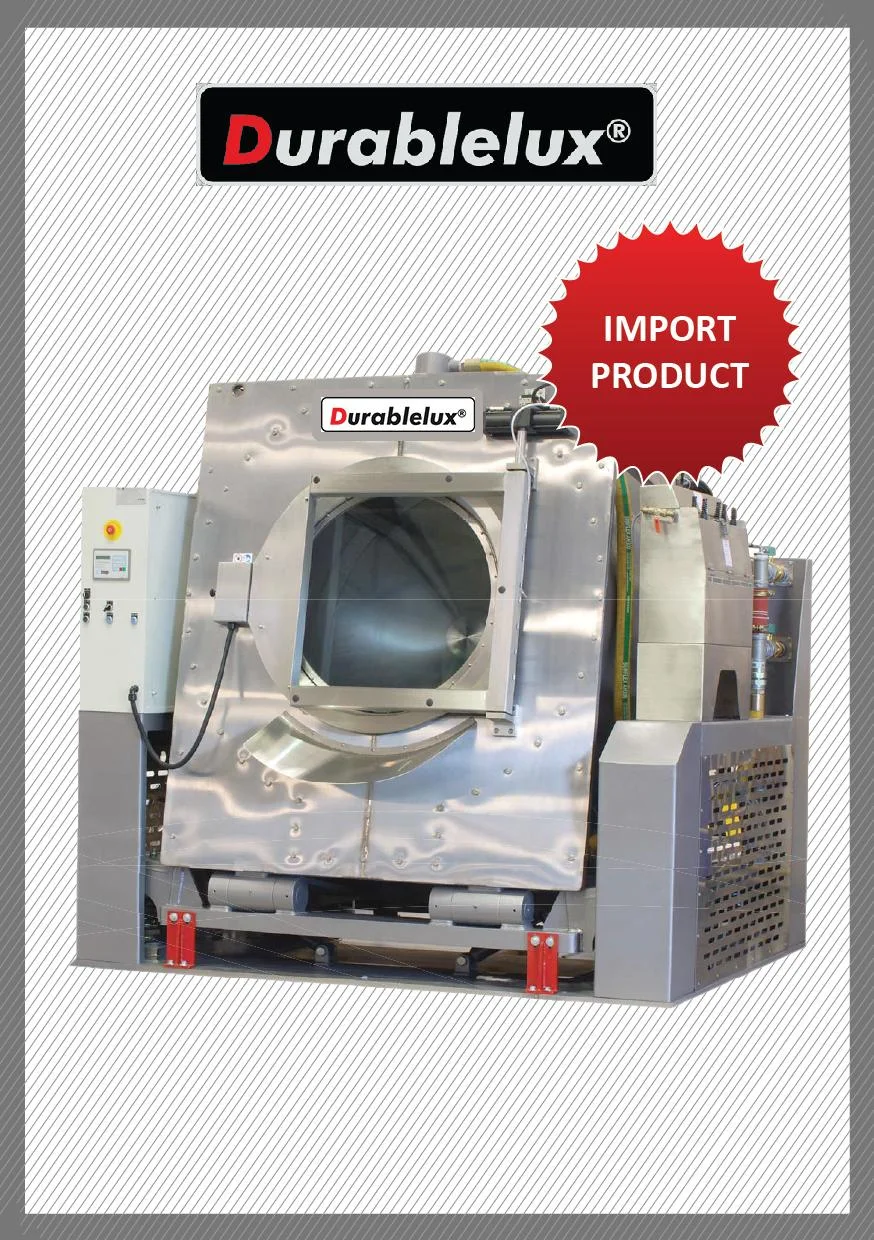

DURABLELUX Softmount Automated Industrial Washer Extractors DSA Series

1. Heavy Duty Frame
2. Advanced Microcomputer. PC programmable. Programs can be transferred with memory cards
3. Extract Force 250G
4. 8 Signals for Central Liquid Chemical Supply. Expandable to 10
5. 5+1 Liquid Supply Connections
7. Stainless Steel Front Cabinet Panel for SA275 and SA300 only
8. Automatic Hydraulic Door Opening
9. Oversized door and basket opening
10. All parts in contact with wash solution made of 304 (18/8) stainless steel
11. Prepared for Direct Steam Injection
12. Single Motor Inverter Driven
13. Air Cushion Suspension System on SA-475
14. Dry Zone Bearing Design
15. Cool Down
16. Programmable Variable Speed
17. Programmable Water Levels
18. Programmable Water Temperature
19. Single 4″ Rear Drain Connection (SA275, 300)
20. Single 8″ Straigh Down Drain SA475
21. Pneumatic Water & Steam Vlaves on SA475
22. Electrical System Standard 380-415V / 50Hz / 3Ph, 208-240V / 60Hz / 3Ph, 440-460V / 60Hz / 3Ph
23. 5 compartment supply dispenser
24. Totally enclosed heavy duty drive motor
25. Bearings outside the wash solution
26. 3 degree leanback for lower bearing loads
27. Heavy duty suspension system
